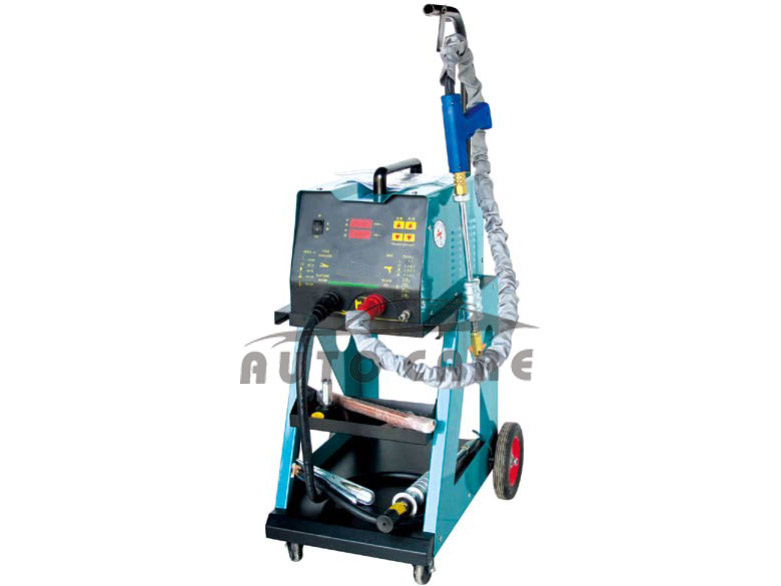

Thyristor spot welding(For Steel car body)
AC-10088
Brife: AC-10088 transformer winding is pure copper. It adopts micro-CPU control, thepower can regulate infinitely. The power level(1%-100%), the time level(0.01s-9.99s). Recommended datas are on the operation panel for each function.
1.Micro-CPU Control;
2.CPU promise adjust;
3.Separated design, easy to operate;
4.Automatic overheating protection;
5.Precise time adjustment system;
6.Different welding electrods for vertical pulling;
7.Heat, meson, vertical pulling, spot welding, flatten, wavy-line and triangle shim welding functions for different plates;
8.Digital display;
9.Large-scale pulling tool and wavy-line welding;
Technical parameter | ||
Model | AC-10088 | |
Power supply | 400V or 230V 50/60Hz | |
Max current | 6800A | |
Output voltage | 5-13V | |
Welding depth | 0.8+1.2mm | |
Cables | 2*2m*75mm2 | |
Transformer winding | Copper | |
Accessories packing size | 64*43*55cm(0.15CBM) | |
Mainfram packing size | 60*35*38cm(0.08CBM) | |
Gross Weight | 79kg | |
Packing | Carton | |
Certification | ISO CE | |
Code | 106000 | |
MOQ | 1 set |
