AC-10000X

Description

AC-10000X

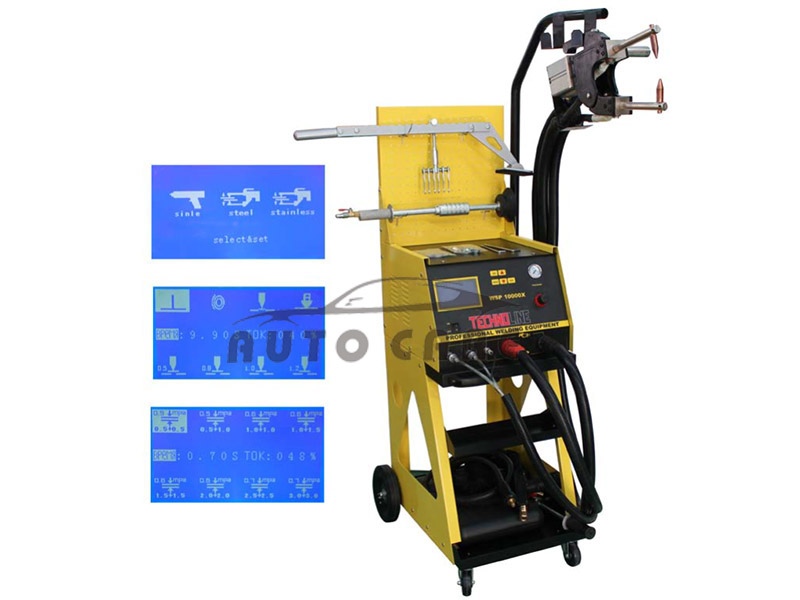

Brife: AC-10000X is for professional car body workshops. It allows spot welding 2 faces with a pneumatic clamp; welding monopoint 1 face with a gun for small repairs, hammered, patchwork and nails poses, pins, discs, rivets. Moreover, it supplys steel and stainless steel welding with 12 functions, we set the recommendation current and time value. AC 10000X features:

1. Automatic over-heated protection function;
2. Repair functions for different steel auto body include stainless steel and other materials ;
3.One side welding and both sides welding can be chosen;
4.Heat,meson,vertical pulling,spot welding,flatten,waveform line,whorl post,triangle shim etc welding;
5.Possess gas filtrate and regulate function;
6.Unique cable rack,have front-back flexible function,Can turn 360 degree;
7.Triangle shim direct spot welding repair;
8.LCD digital chinese and english graph display;
9.Large puller and waveform welding;
10.Equipped infinitely current regulate,for any options.

Technical parameter
Model AC10000X
Power supply 2ph 400V or 1ph 230V 50/60Hz
Max current 10000A
Normal power at 50% 12KVA
Max power 60KVA
Thermal class F
Protection degree IP21
Max air pressure 1.0Mpa(10Bar)
Output voltage 2-13V
Welding depth 1.0+1.5mm (1 face)
Welding depth 3.0+3.0mm (2 faces)
Cables 2*3m*150mm2 (2 faces)
Cables 2*2.5m*75mm2 (1 face)
Packaging Size 62*68*120cm(0.51CBM)
Gross Weight 135kg

Packing Wooden
Certification ISO CE
Code 116000
MOQ 1 set
