ACS8-3GUN

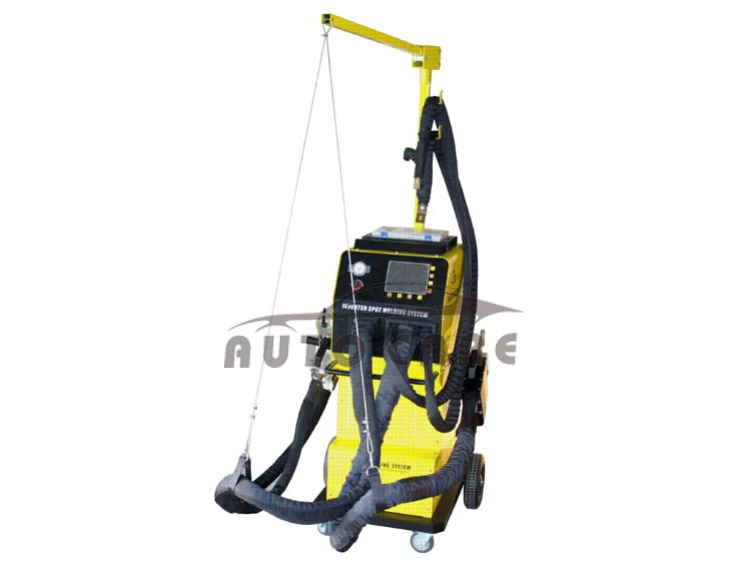

INVERTER SPOT WELDING SYSTEM 14000A

ACS8-3GUN

Brief: AC-3GUN is ideal for car-body works and serial productions. With double pistons cylinder, customisation of any stored spot welding programs; Operation with pneumatic clamp, manual and studder welding; Senses the voltage and auto-compensates for the power source; Control and regulation of all the steps of the spot welding process; Microprocessor controlled, three-phases, inverter (MFDC 2000Hz) resistance welding; Automatic control of the spot welding current(14000A) continuous and pulse operation; High efficiency and productivity improved in comparison with the traditional resistance welding systems; Over 200 pre-set programs according to the kind and thickness of the material used and to the kind of clamp chosen; High quality and aesthetic of the spot on all kinds of high resistance steels,HSS, AHSS, galvanized steels and stainless steels. AC-3GUN features:

1.Spot Welding Gun: Single Sided Gun, C-Gun, X -Gun
2.Welding Pulse: Single Pulse, Double welded, Pulse welding
3.Display system: 8"LCD Display
4.Protection and Testing functions: Air pressure, Voltage testing, Offset Voltage, Temperature sencer monitoring, Lack of phase, Over-current, Thermal protections
5.Cooling System: Water cooled C-gun/arm sets/Transformer/Radiator

Technical parameter

Model

ACS8-3GUN

Power supply

3ph 380-430V 50/60Hz

Max current

14000A

Normal power at 50%

25KVA

Max power

73KVA

Thermal class

H

Protection degree

IP21

Max electrode power 8bar

X-Gun: 345daN

C-Gun: 350daN(600Lb)

No-load voltage

4-21V

Welding depth

2.0+2.5mm (1 face)

Welding depth

4.0+4.0mm (2 faces)

2.0+2.0+2.0mm (2 faces)

Cables

2*3m*150mm2 (2 faces)

Cables

2*2.5m*75mm2 (1 face)

Packaging Size

80*73*126cm(0.74CBM)

Gross Weight

170kg



Packing

Polywood

Certification

ISO CE



Next: ACS12-3
