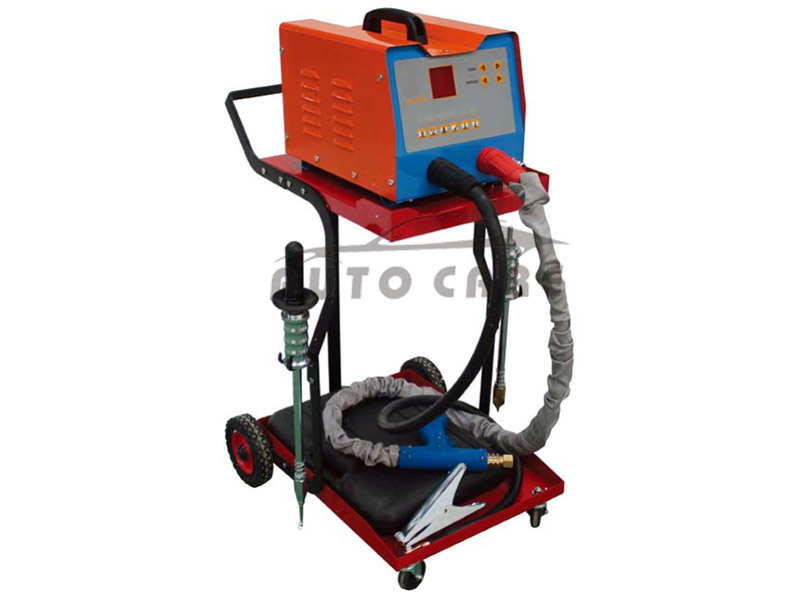

Easy spot welding
AC-2602

Brife: AC-2602 transformer winding is pure copper. It adopts micro-CPU control, thepower can regulate infinitely. The power level(1%-100%), the time level(0.01s-9.99s). Recommended datas are on the operation panel for each function.

1.Micro-CPU Control;
2.CPU promise adjust;
3.Separated design, easy to operate;
4.Automatic overheating protection;
5.Precise time adjustment system;
6.Different welding electrods for vertical pulling;
7.Heat, meson, vertical pulling, studs welding puling, spot welding, flatten, wavy-line and triangle shimwelding functions for different plates;
8.Digital display;
9.Large-scale pulling tool and wavy-line welding;

Technical parameter
Model	AC-2602
Power supply	2ph 400V or 1ph 230V
Max current	2000-5000A
Output voltage	3-13V
Welding depth	2.0+1.5mm
Cables	2*2m*80mm2
Transformer winding	Copper
Packaging Size	54*39*52cm(0.11CBM)
Gross Weight	55kg
Packing	Carton
Certification	ISO CE
Code	113000
MOQ	1set
