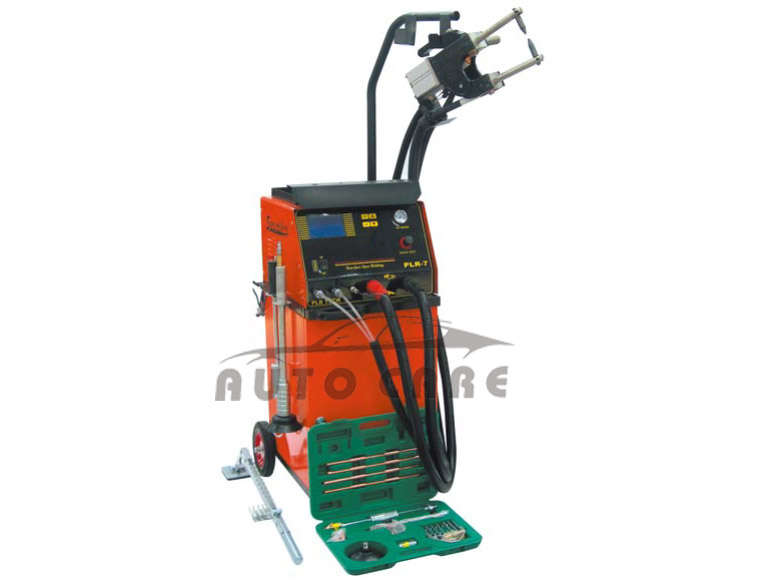

Thyristor two face spot welding(For Steel car body)
AC-7.1
Brife: AC-7.1 is for professional car body workshops. It allows spot welding 2 faceswith a pneumatic clamp; welding monopoint 1 face with a gun for small repairs, hammered, patchwork and nails poses, pins, discs, rivets. AC-7.1 features:
1.Automatic over-heated protection function;
2.Repair functions for different steel auto body include stainless steel and other materials ;
3.One side welding and both sides welding can be chosen;
4.Heat,meson,vertical pulling,spot welding,flatten,waveform line,whorl post,triangle shim etc welding;
5.Possess gas filtrate and regulate function;
6.Unique cable rack,have front-back flexible function,Can turn 360 degree;
7.Triangle shim direct spot welding repair;
8.LCD digital chinese and english graph display;
9.Large puller and waveform welding;
10.Equipped infinitely current regulate,for any options.
Technical parameter | ||
Model | AC-7.1 | |
Power supply | 2ph 400V or 1ph 230V 50/60Hz | |
Max current | 7000A | |
Normal power at 50% | 10KVA | |
Max power | 50KVA | |
Thermal class | F | |
Protection degree | IP21 | |
Max air pressure | 1.0Mpa(10Bar) | |
Output voltage | 2-13V | |
Welding depth | 1.0+1.5mm (1 face) | |
Welding depth | 2.5+2.5mm (2 faces) | |
Cables | 2*3m*150mm2 (2 faces) | |
Cables | 2*2.5m*75mm2 (1 face) | |
Packaging Size | 62*68*120cm(0.51CBM) | |
Gross Weight | 145kg | |
Packing | Wooden | |
Certification | ISO CE | |
Code | 115000 | |
MOQ | 1 set |
