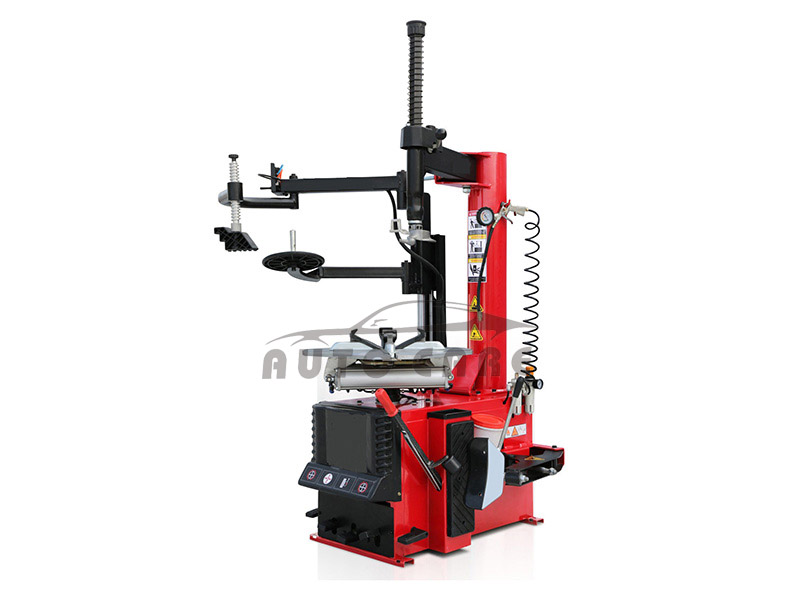

ATC-620+313: With 313 helper arm for 10"24" tire

Description

ATC-620+313 Specification:
Model ATC-620+313
Rim Clamp from outside 10"-22"
Rim Clamp from inside 12"-24"
Max. Wheel Diameter 1040mm
Tire Width 3”-15”
Working Pressure 8~10bar
Voltage 380V/220V/110V
Power 0.75kw/1.1kw
Machine Weight 244kg

Main Features:
1.Central pressing tyre function makes jaws grip rim fastly.
2.Adjusting mobile slider to be suitable for different rim ranges.
3.The motion structure of the four automatic alignment gripping jaws on the turnplate is link mechanism, which has synchronizing function and fix center automatically when gripping from outside to inside.
4.The once forming mobile slider and the design of processing machinery structure made it not easy to deformation.
5.The working head is plated hard chrome on the surface through high frequency sudden fire, this kind of treating processes insure the intensity, toughness and abrasive resistance.
6.the round working turnplate has synchronous centering and fine adjustment function which make the operating of tyre changer more easy and smooth.
7.The tools touching rim directly like changing working head,jaws,crwobar and spade are all equipped with protector,these protectors ensure no hurt to the rim.
8.It has good personal presentation,thick steel plate and super strong rigidness.
