2CL-5000G: 5ton heavy duty capacity

Description

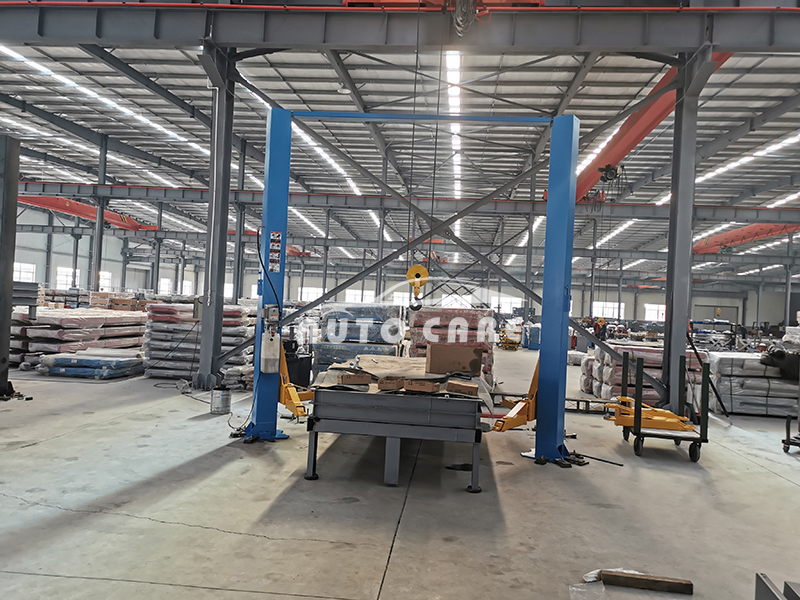

2CL-5000G
Specification:

Model Number 2CL-5000G
Lifting Capacity 5000kg
Lifting Height 1800mm
Lowest Height 100mm
Column Height 3724mm
Column Space 2780mm
Installation Width 3390mm
Rise Time 55s
Fall Time 50s
Motor Power 2.2kw
Power Supply 220/240/380v/415v, 1/3phase
Main Feature:
IBilateral manual unlocking
The support arm is locked automatically when it goes up and is unlocked automatically when it goes down to the ground due to the self-locking structure.
The two-section spiral cushion can adjust height easily, facilitates positioning of auto supporting point, and is suitable for more low chassis vehicles.
The throttle valve is installed on the end of oil cylinder. The safety can be ensured even though the oil pipe bursts.
24V height limit switch can effectively prevent damage to car roof.
The rubber bumper pad is standard configuration and can effectively prevent damage to car door.
